ServiceNow Event Management

The Send to ServiceNow option in the trigger menu forwards every event a trigger matches to a ServiceNow instance running the Event Management plugin. Forwarded events appear in ServiceNow under Event Management, All Events and roll up into alerts through ServiceNow's message_key correlation.

ServiceNow is configured once, under Settings, System Settings, ServiceNow. Any number of triggers can then tick the box. Events matched during one period are sent together in batched requests, so a burst of matching events does not become a burst of connections.

Events flow into the Event Management module. Creating incident tickets through the ServiceNow Table API is a different surface; use an outgoing webhook for that.

How it works

1. A trigger with Send to ServiceNow matches events.
2. Every matched event of the period (the ServiceNow batch period, 60 seconds by default, or the trigger's own period) is collected.
3. One background job reads the events, builds one ServiceNow record per event and posts them in chunks of Batch Size records to the instance's inbound events endpoint over HTTPS with basic authentication.
4. Transient failures are retried with exponential backoff. A batch that still fails, or one rejected with an authentication error, produces an internal LogZilla event of severity ERROR with program ServiceNow. The built-in Logzilla Errors trigger notifies on it, and any trigger filtering on program = ServiceNow can act on it as well.

Nothing has to be edited on the LogZilla server, and no process is started per event.

Settings

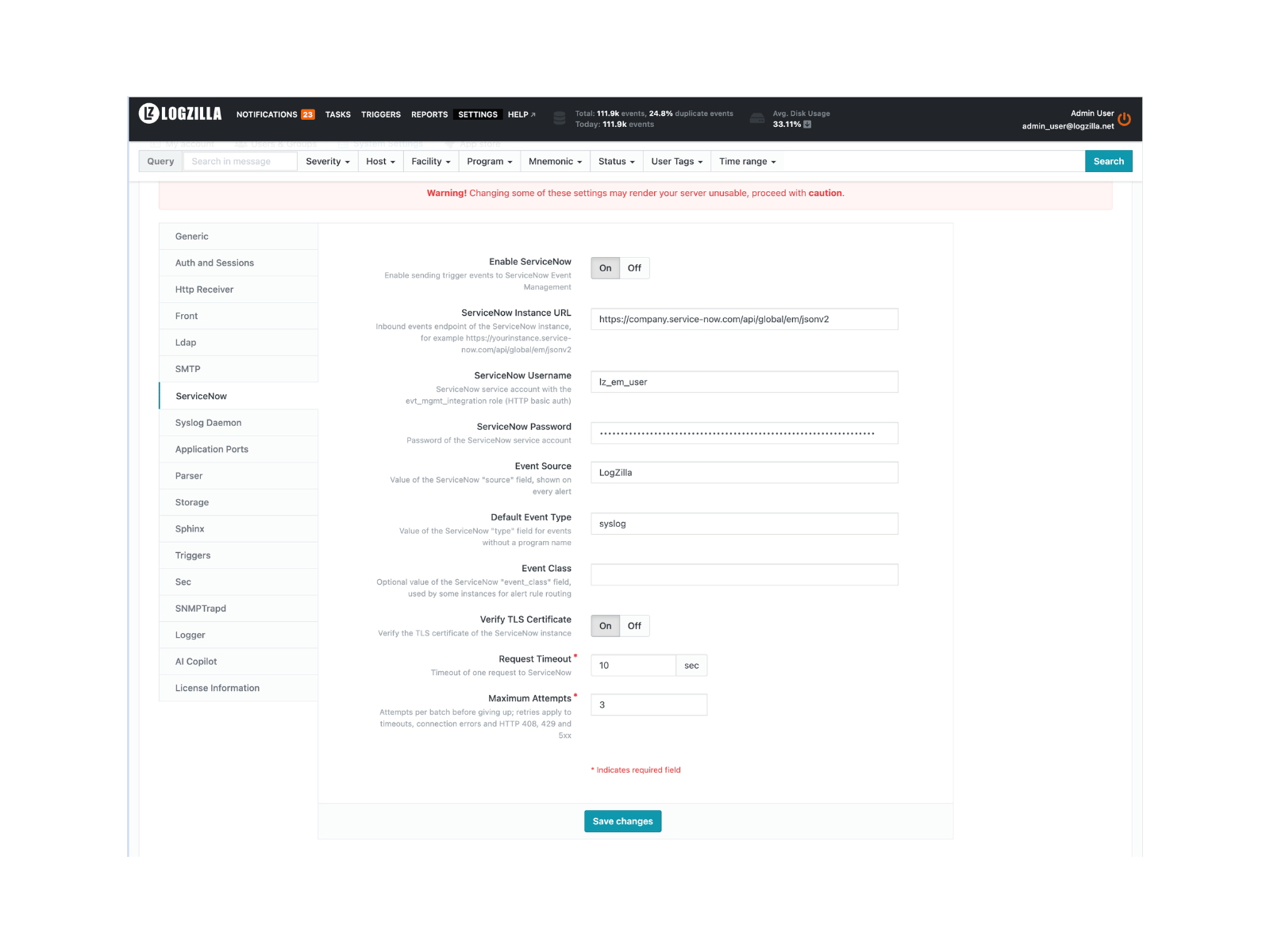

Open Settings, System Settings, ServiceNow and fill in the fields. Saving with Enable ServiceNow on requires an instance URL starting with https:// (or http://), a username and a password; the page refuses to save otherwise.

The advanced fields appear when Show Advanced Settings is on in the Generic settings group.

The default interval between batches of one trigger is the ServiceNow batch period field of the Triggers settings group (60 seconds). A trigger can override it with its own period.

Command-line equivalent

The same values live in servicenow.yaml and can be set with the logzilla settings command, for example when scripting an installation:

bash
Wrap: OnCopyFullscreen
logzilla settings update SERVICENOW_ENABLED=true \
  SERVICENOW_INSTANCE_URL=https://acme.service-now.com/api/global/em/jsonv2 \
  SERVICENOW_USERNAME=lz_em_user \
  SERVICENOW_PASSWORD='<password generated in ServiceNow>'

The Server Settings page under Administration lists every key of the group with its default and range.

Severity mapping

LogZilla uses syslog severities (0 to 7). ServiceNow Event Management uses 0 to 5 (0 Clear, 1 Critical, 2 Major, 3 Minor, 4 Warning, 5 Info).

Change a row by picking another value in the corresponding advanced field, for example Severity for Warning (4) set to 2 promotes syslog Warning from Minor to Major.

Enable it on a trigger

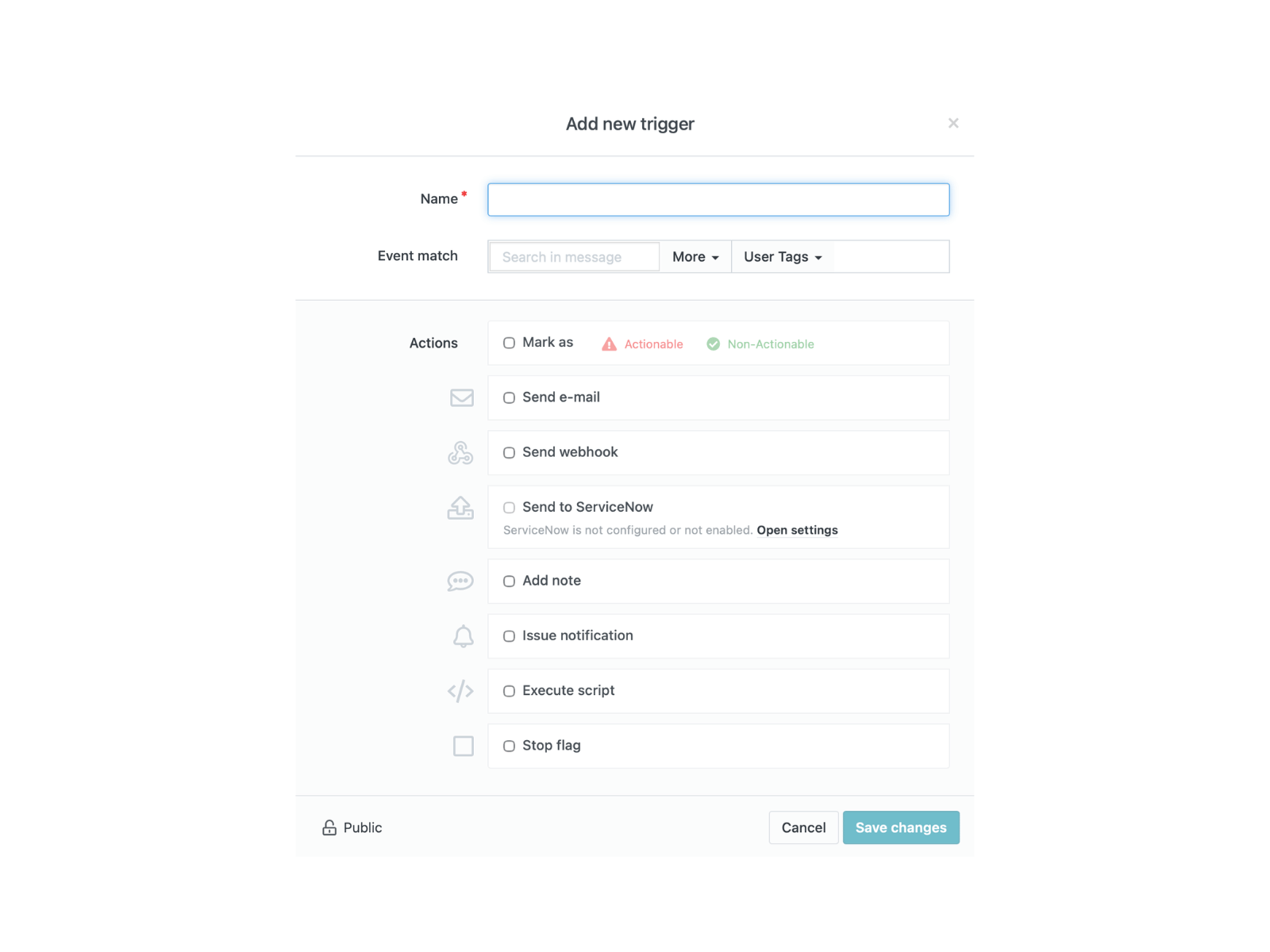

Open Triggers, create or edit a trigger, set the filter, and tick Send to ServiceNow in the actions list. The box is disabled with a link to the settings page until Enable ServiceNow is on.

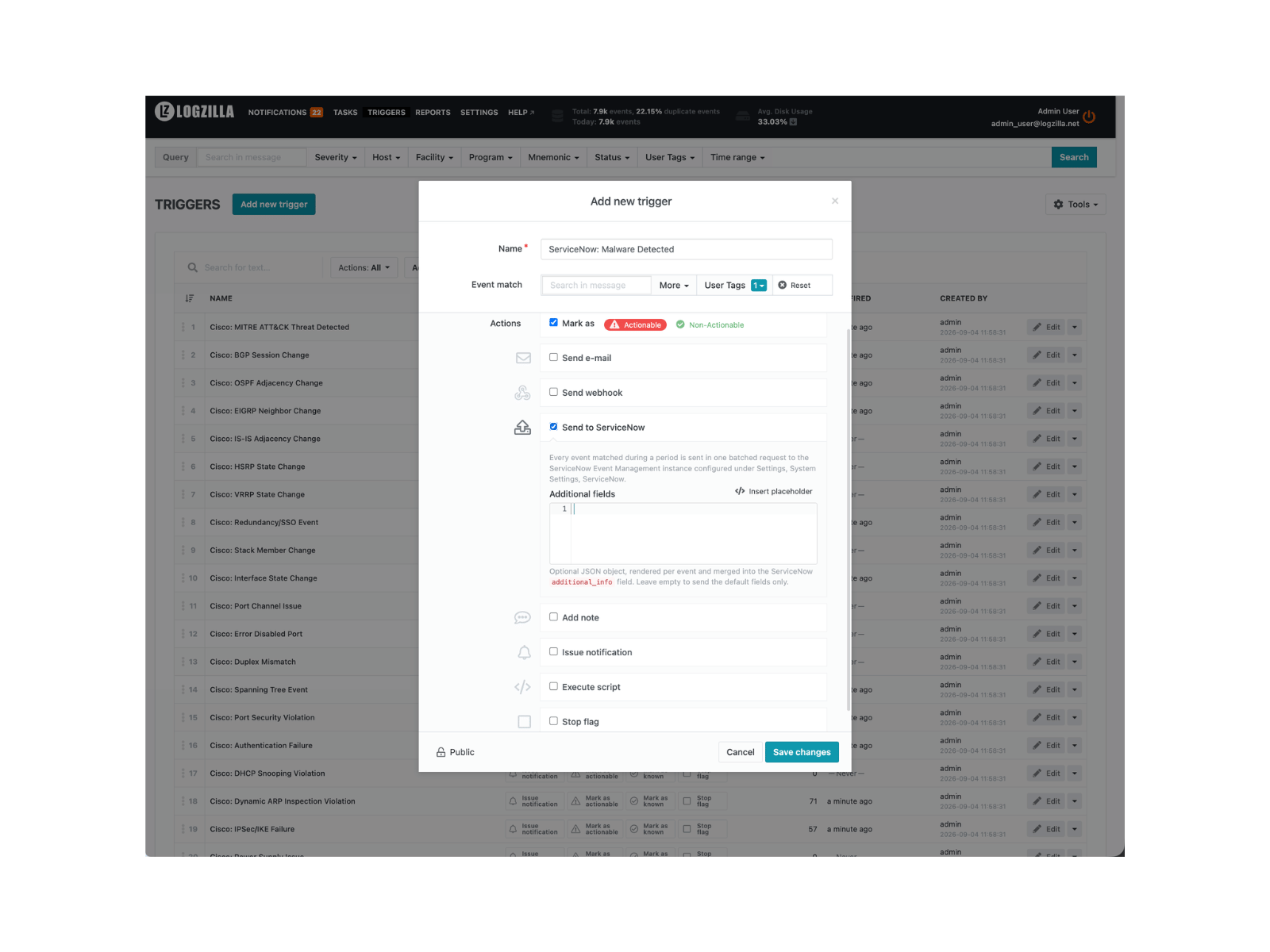

Once enabled, ticking the box opens the template editor:

Start narrow. A filter on the events that matter to the operations team, such as status = 1 (events an upstream rule or trigger marked actionable) or a vendor app's Event Class tag, produces alerts ServiceNow users act on. A plain severity filter such as severity <= 3 forwards every error from every device and has flooded ServiceNow instances on large networks; if it is used at all, combine it with a host or program filter.

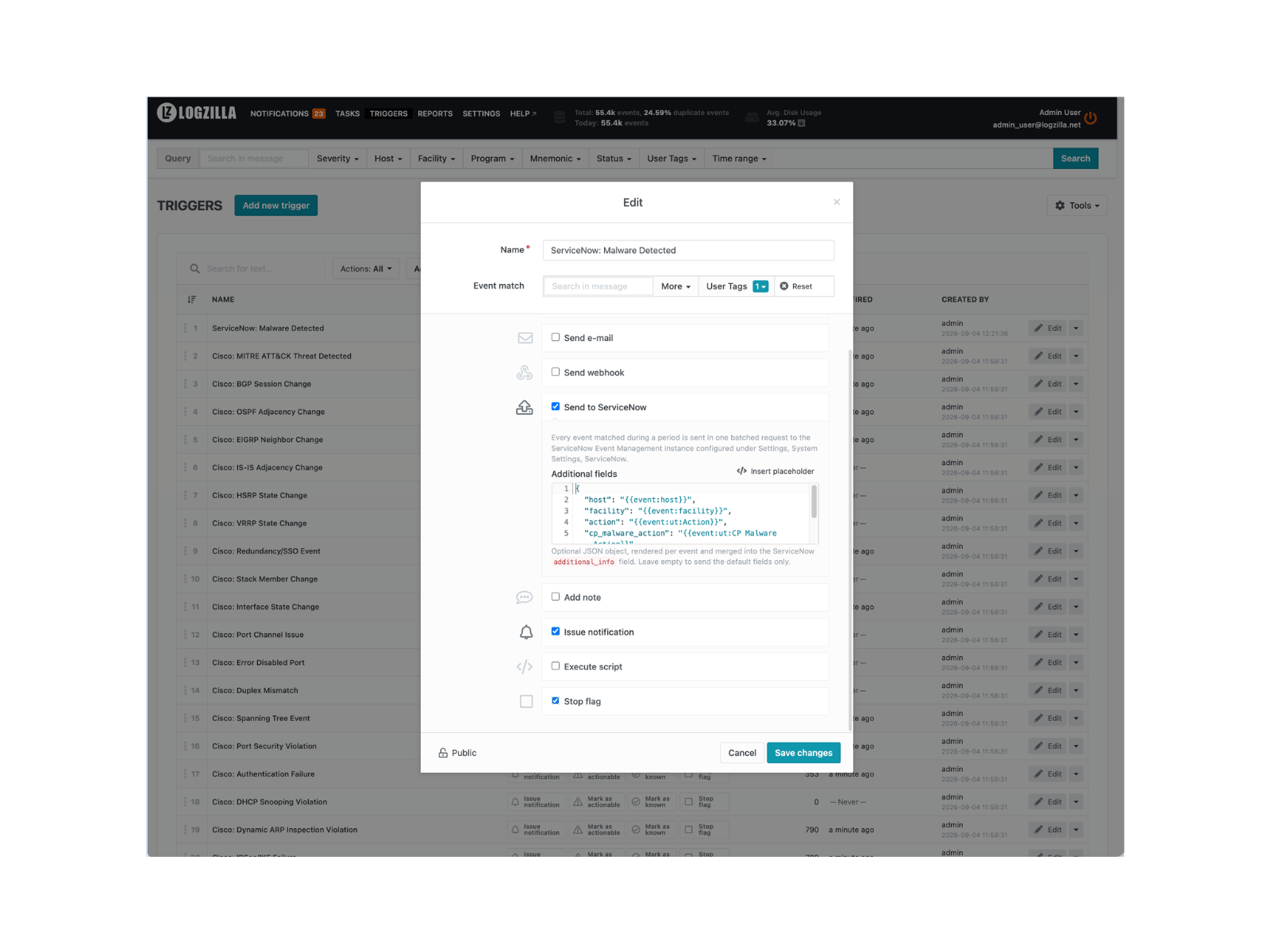

Tick two more actions on a forwarding trigger:

• Issue notification, so the Notifications page lists every event the trigger matched. That list is the record of what was sent to ServiceNow and the first place to look when an alert is missing there.
• Stop flag, so an event forwarded to ServiceNow is not also picked up by the triggers below it, which would raise a second notification or e-mail for the same event. Place the ServiceNow trigger above the triggers it should take precedence over; triggers are evaluated in list order.

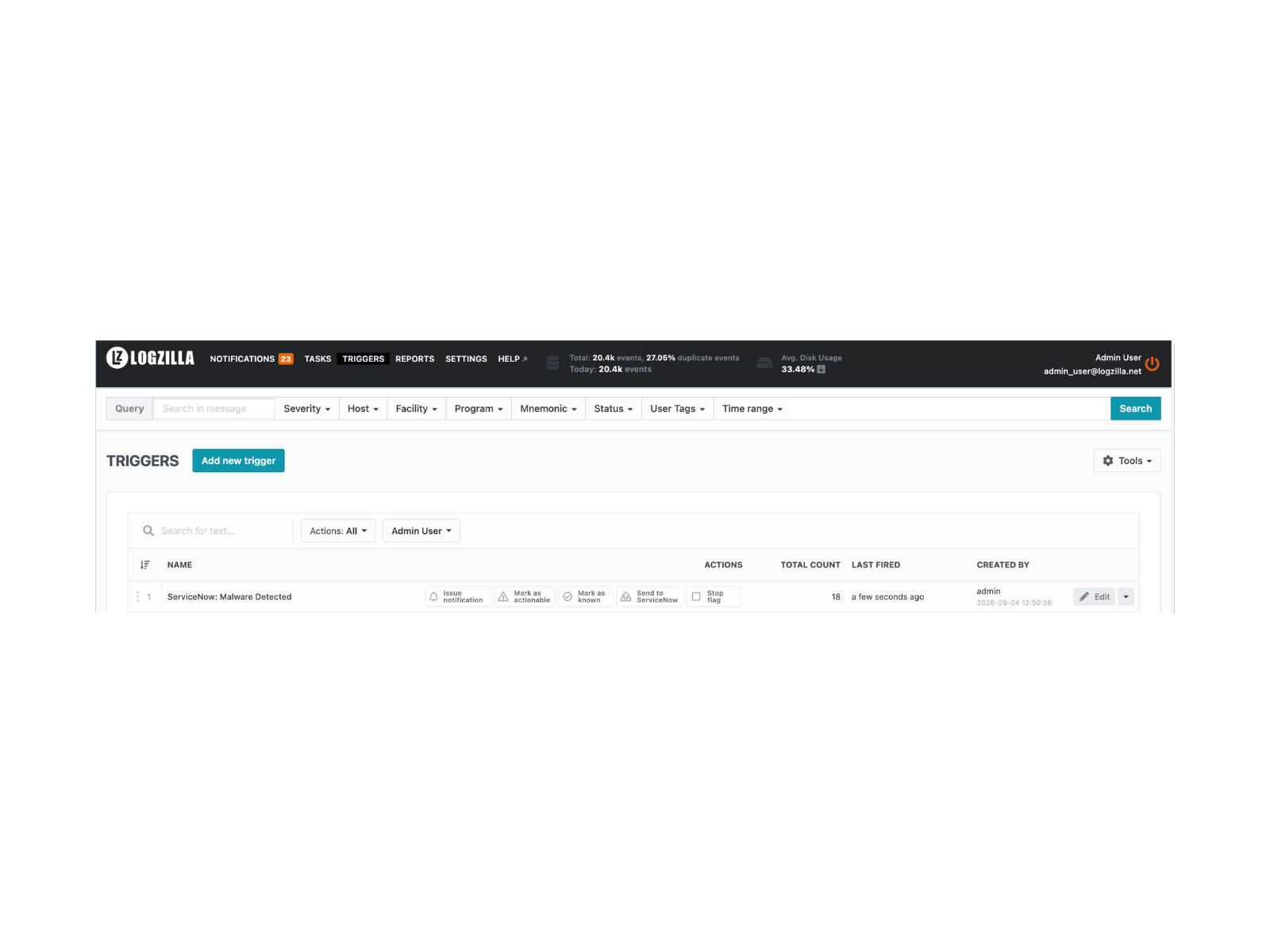

The trigger list shows the action next to the others:

Additional fields

The optional Additional fields template is a JSON object rendered per event and merged into the record's additional_info. It uses the same placeholders as webhook templates: {{event:host}}, {{event:program}}, {{event:message}}, {{event:severity}}, {{event:facility}}, {{event:cisco_mnemonic}}, {{event:ut:Tag Name}} for user tags and {{trigger_hits:count}}.

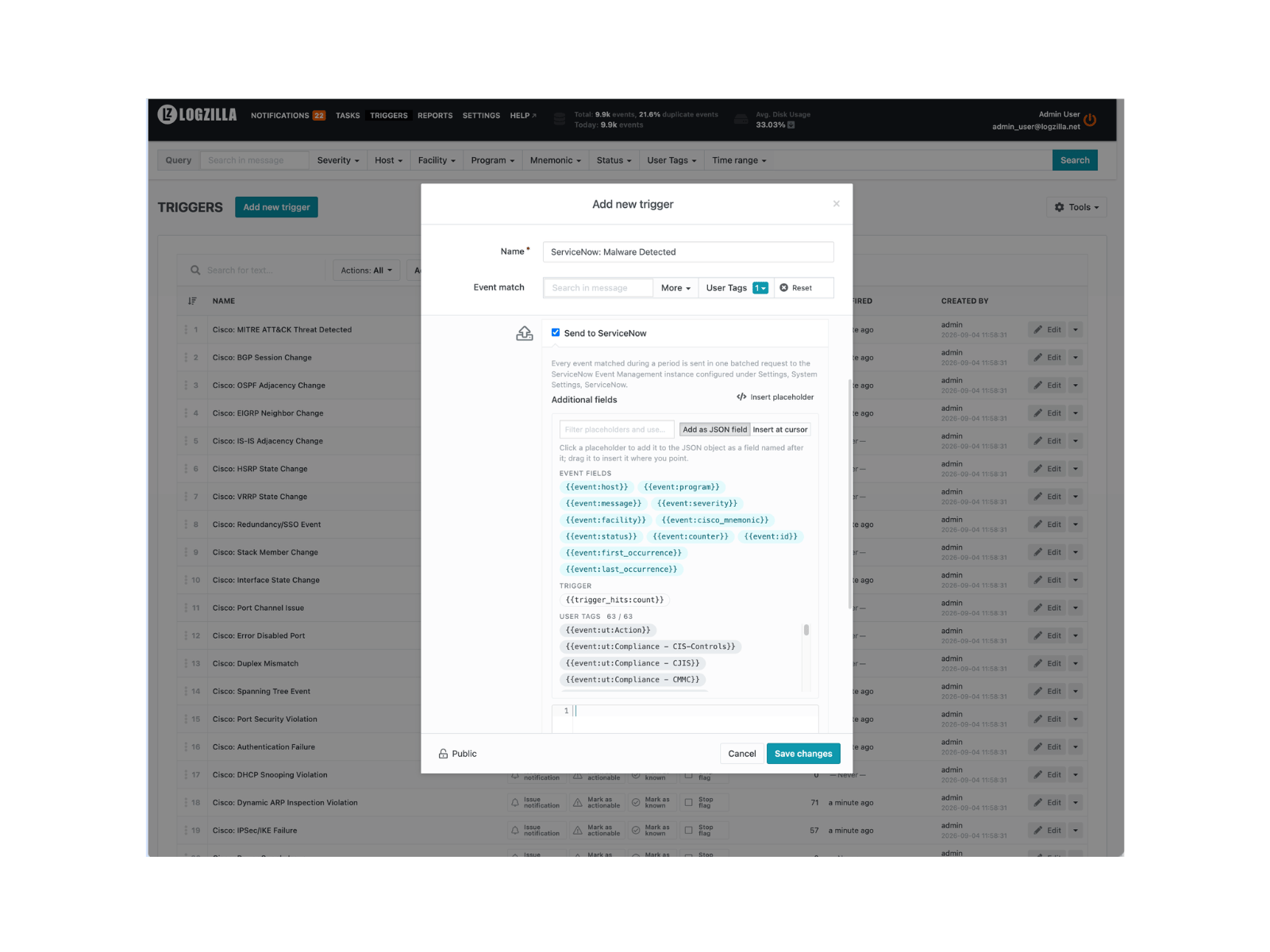

Insert placeholder above the editor opens a picker with the event fields, the trigger placeholders and every user tag the system currently knows, with a filter box. Clicking a pill adds a field named after the placeholder to the JSON object ({{event:ut:Site}} becomes "site"), so a template can be built without typing; Insert at cursor switches the click to a plain insertion, and a pill can always be dragged into the editor.

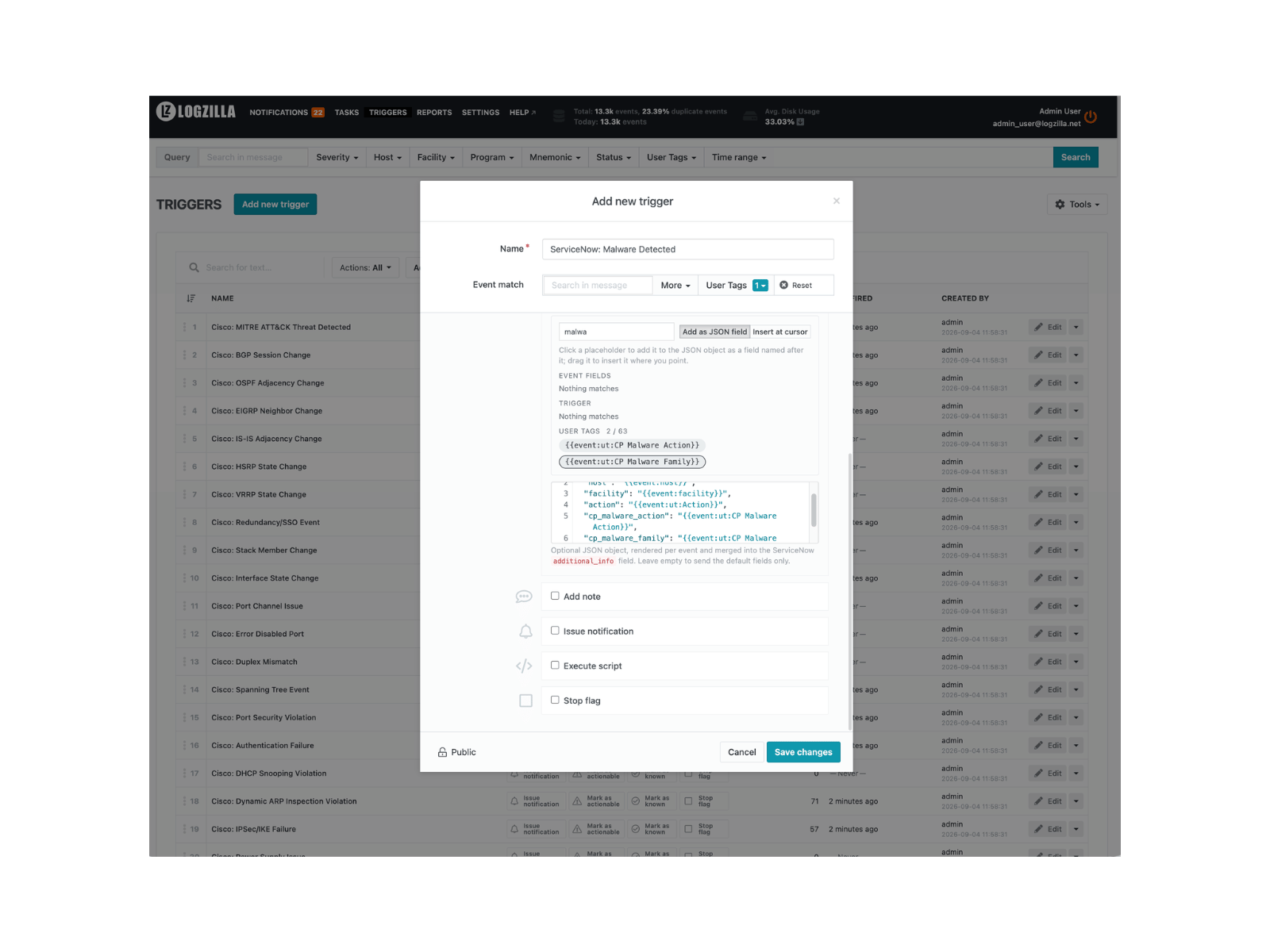

The filter box narrows every group at once, which is the quickest way to find a user tag among many:

json
Wrap: OnCopyFullscreen
{
  "site": "{{event:ut:Site}}",
  "vendor": "{{event:ut:Vendor}}",
  "assignment_group": "Network Operations"
}

Template keys win over the built-in additional_info keys of the same name. A template that does not render to a JSON object for an event is skipped for that event with a warning in the LogZilla log; the event is still sent.

Record layout

Each event becomes one item of the records array posted to /api/global/em/jsonv2:

Failure handling

To be alerted, keep the built-in Logzilla Errors trigger active or create a trigger with filter program = ServiceNow and the wanted notification action. While ServiceNow stays unreachable, every affected trigger produces one such event per period after its retries.

ServiceNow setup

The integration needs three things on the ServiceNow instance: the Event Management Connectors plugin (sn_em_connector), a service account, and the evt_mgmt_integration role on that account. The steps below were verified on the Australia, Yokohama and Zurich releases.

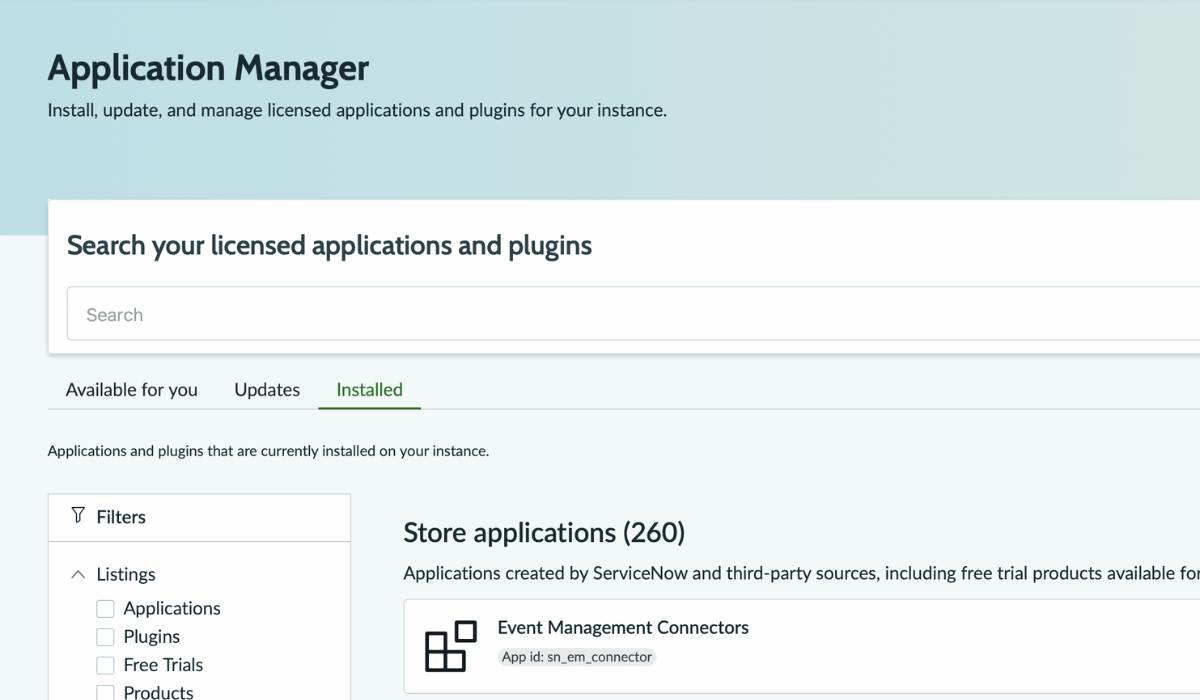

Install the Event Management Connectors plugin

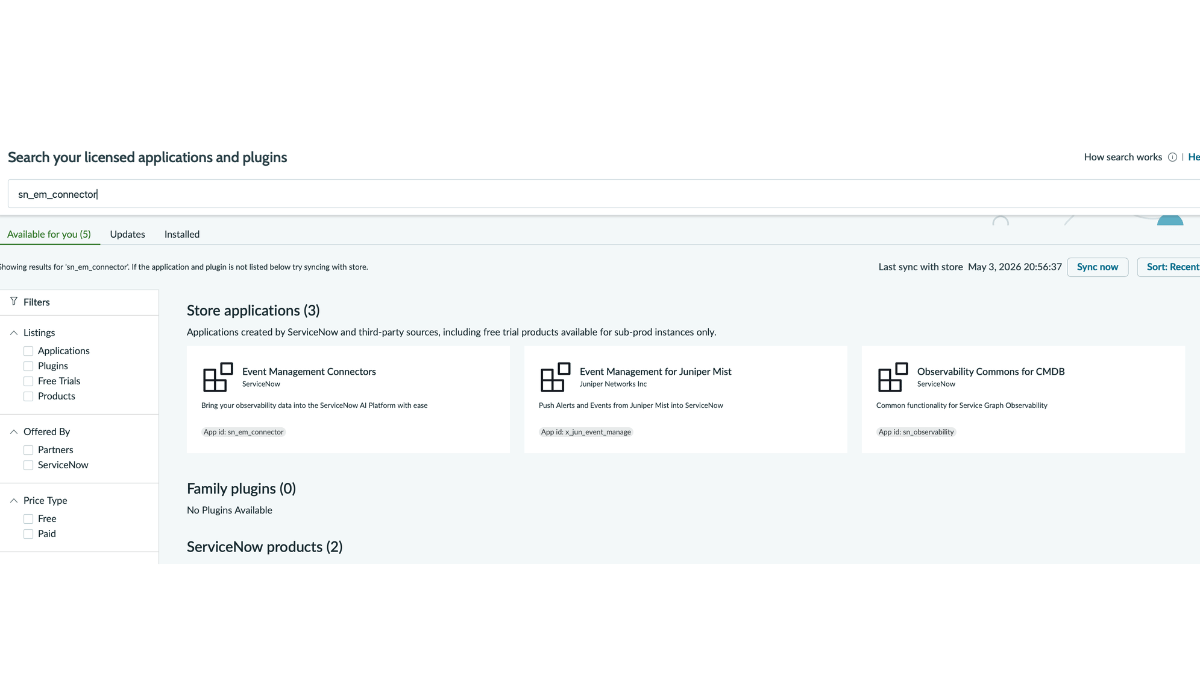

1. Open Application Manager (in All, search Application Manager) and search for sn_em_connector.

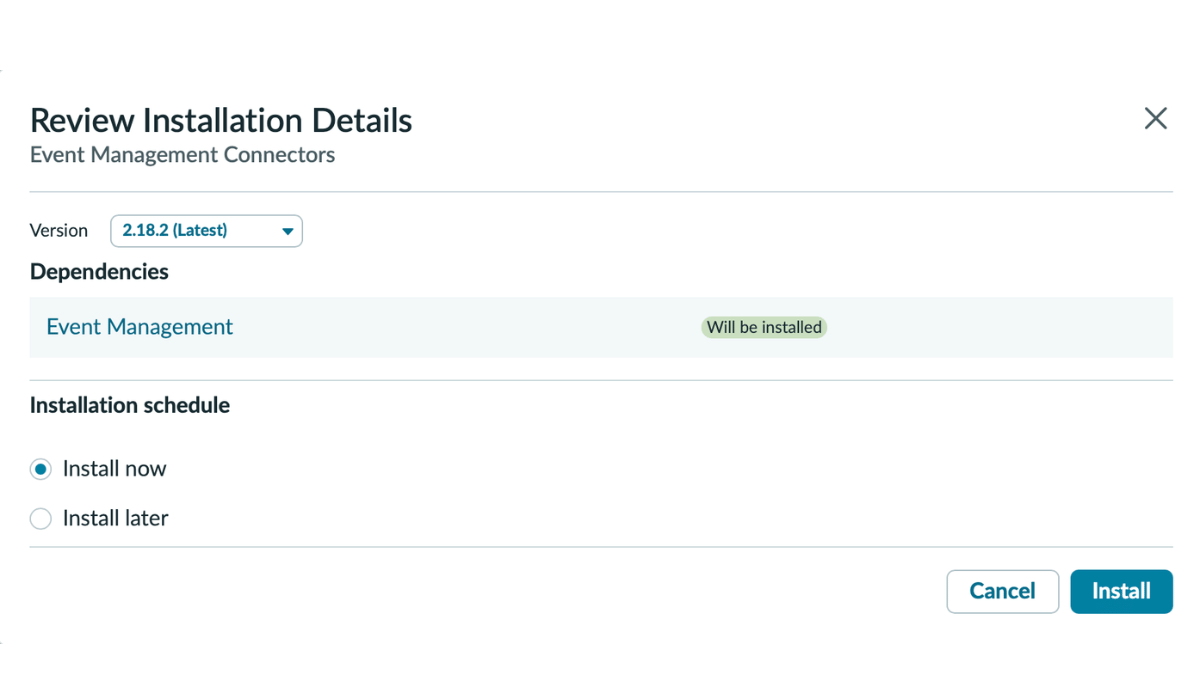

2. Open Event Management Connectors (App id sn_em_connector).



3. Click Install. The plugin pulls dependent packages; installation takes 5 to 15 minutes on a Personal Developer Instance, less on a production instance.

4. Wait for the installation to finish.



The plugin creates the evt_mgmt_integration role and exposes the inbound REST endpoint at /api/global/em/jsonv2.

Create the integration service account

1. In All, search Users and open User Administration, Users.

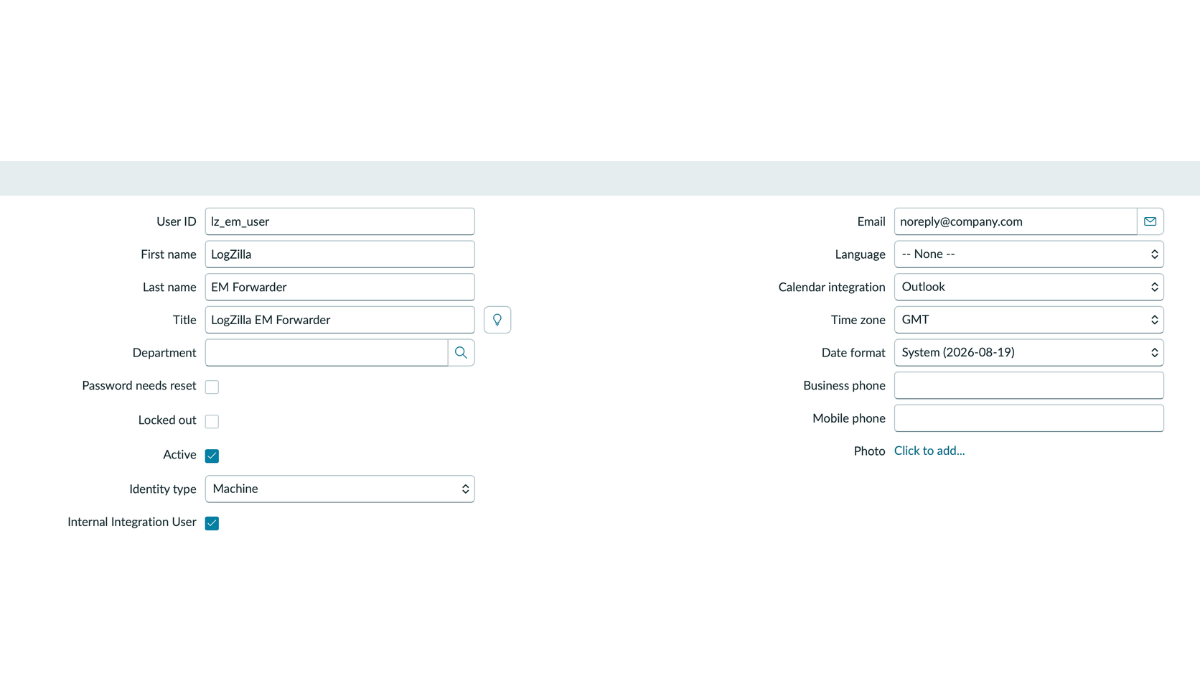

2. Click New and fill in:

   • User ID: lz_em_user (this becomes the ServiceNow Username).
   • First name and Last name: descriptive labels, for example LogZilla and EM Forwarder.
   • Email: a do-not-reply address controlled by the administrator, or blank.
   • Active: checked.
   • Identity type: Machine, and Internal Integration User checked (Australia, Yokohama, Zurich). Older releases show a single Web service access only checkbox instead; check it.



3. Click Update to save.

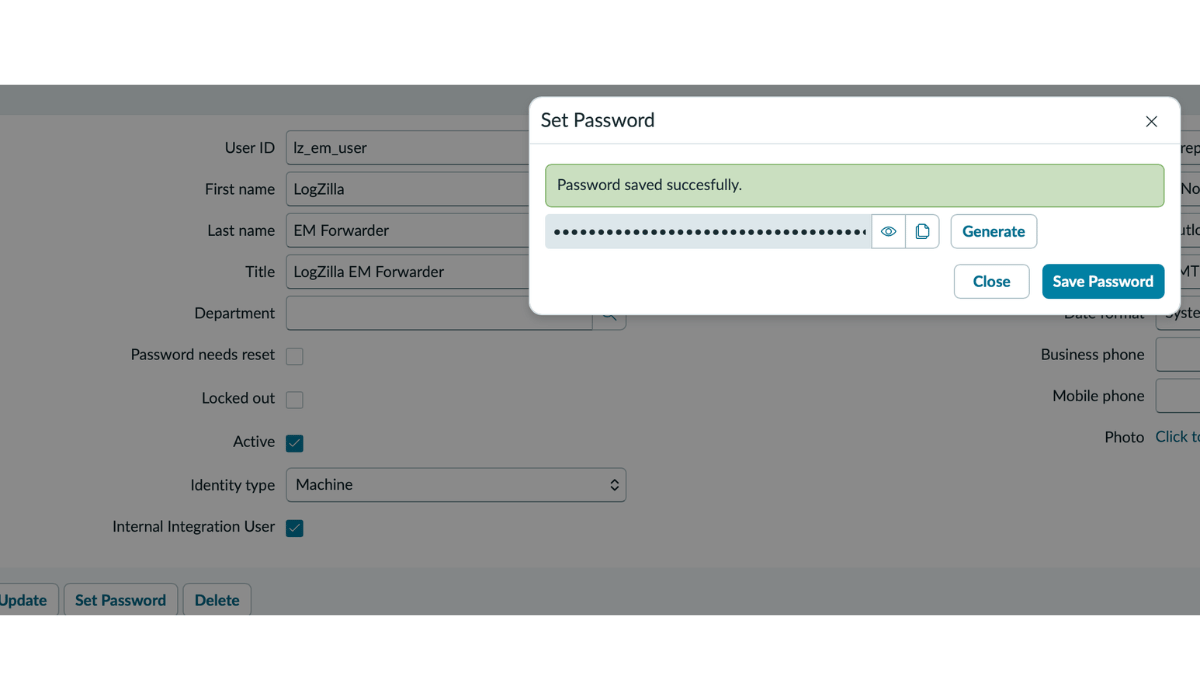

4. Reopen the user record, click Set Password, click Generate, then Save Password. Copy the generated value; it becomes the ServiceNow Password.



Grant the evt_mgmt_integration role

1. With the user record open, scroll to Related Lists and open the Roles tab.

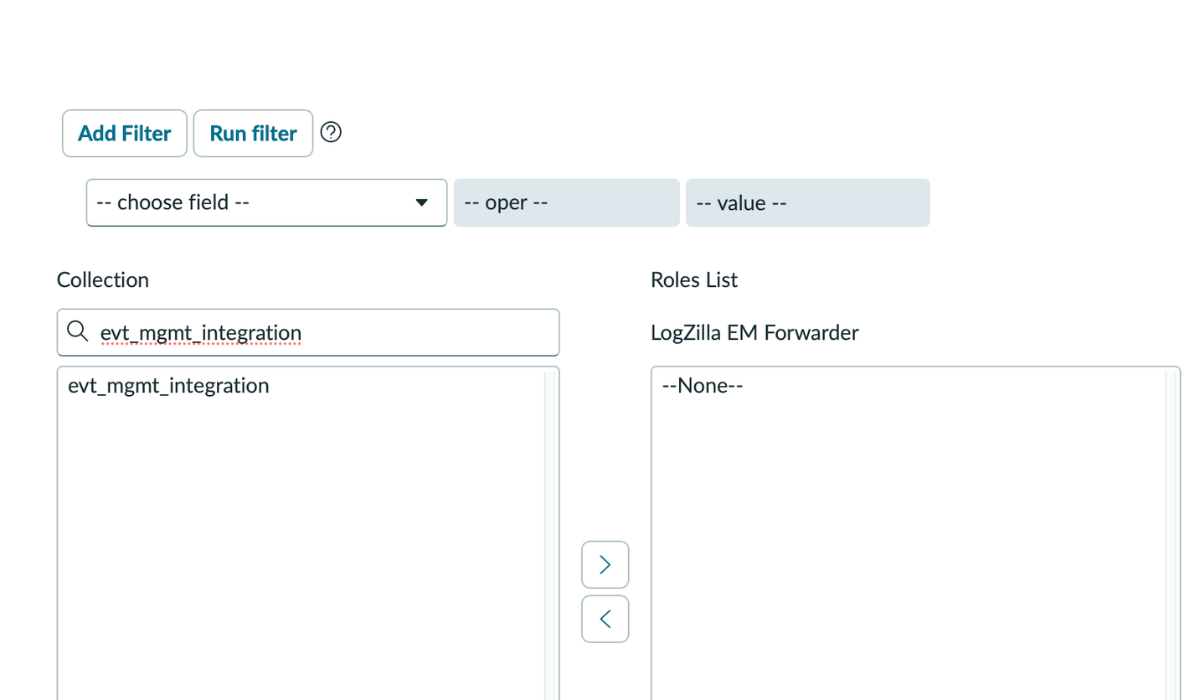

2. Click Edit, search evt_mgmt_integration, move it to the right side and click Save.

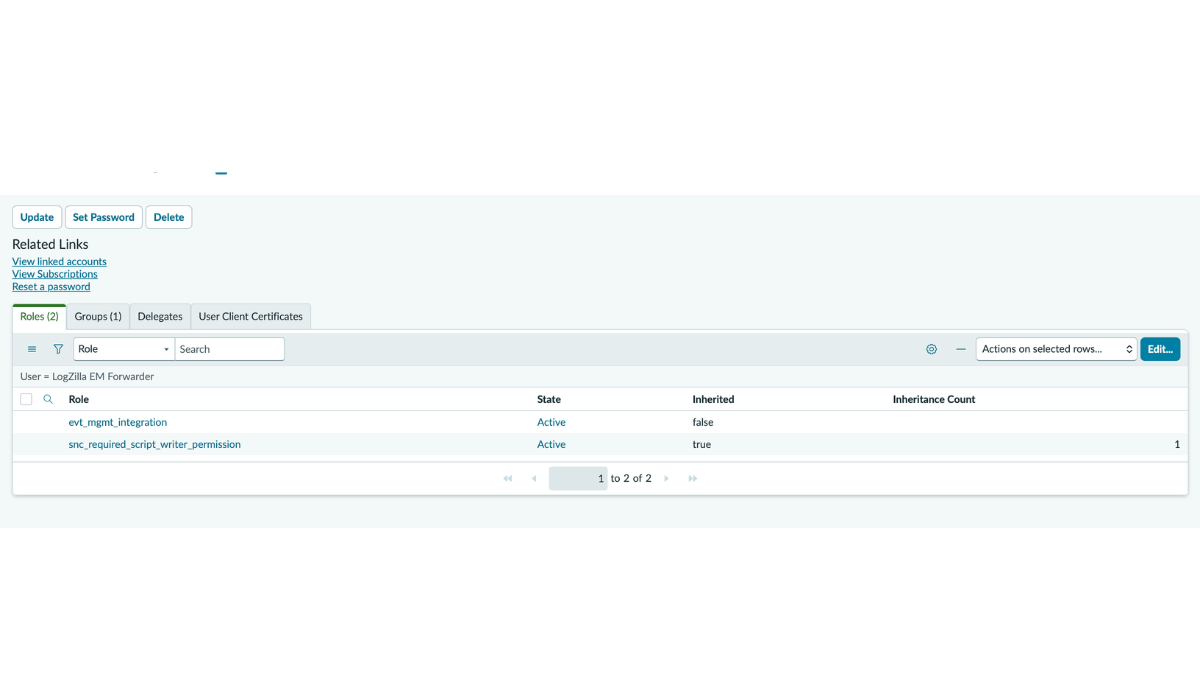

3. The Roles list shows evt_mgmt_integration. An inherited snc_required_script_writer_permission role may appear as well; leave it in place.



Network reachability

The LogZilla server must reach the ServiceNow instance over TCP/443 outbound. On-prem or private-network instances may need firewall rules.

Verify the ServiceNow side

Before enabling the action, confirm the ServiceNow side with one curl from any host that reaches the instance. If it succeeds, later issues are on the LogZilla side.

bash
Wrap: OnCopyFullscreen
SN_PASSWORD='<paste the generated password>'
curl -sS -u "lz_em_user:${SN_PASSWORD}" \
  -H 'Content-Type: application/json' \
  -X POST 'https://yourinstance.service-now.com/api/global/em/jsonv2' \
  -d '{
    "records": [
      {
        "source": "LogZilla",
        "node": "test-router-01",
        "type": "BGP",
        "resource": "BGP-5-ADJCHANGE",
        "severity": 2,
        "description": "test ServiceNow EM forwarding",
        "message_key": "logzilla:smoketest-001",
        "time_of_event": "'"$(date -u +'%Y-%m-%d %H:%M:%S')"'"
      }
    ]
  }'

A successful response looks like:

json
Wrap: OnCopyFullscreen
{
  "result": {
    "Default Bulk Endpoint": "1 events were inserted"
  }
}

Then open Event Management, All Events and confirm a row with Source = LogZilla, Node = test-router-01 and State = Processed.

Verification from LogZilla

1. Turn Enable ServiceNow on in the settings and tick Send to ServiceNow on a trigger with filter severity <= 3.

2. Send a test event to the LogZilla receiver, replacing <logzilla-host>:

   bash
   Wrap: OnCopyFullscreen
   logger -d --rfc3164 -n <logzilla-host> -P 514 \
     -t SN_TEST -p local0.error "ServiceNow EM forwarding test"

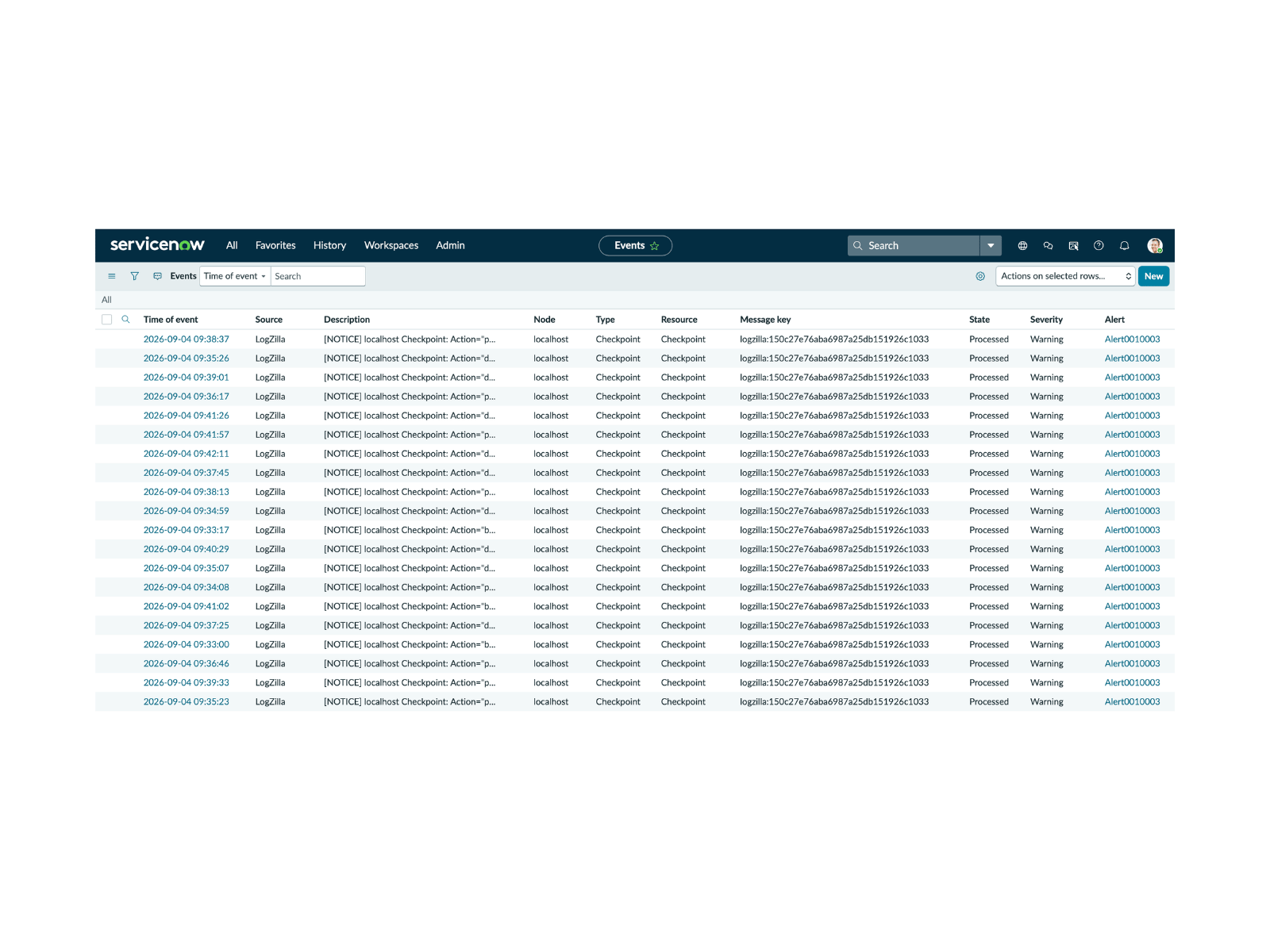

3. Within one period the event appears in ServiceNow under Event Management, All Events with Source: LogZilla and State: Processed.

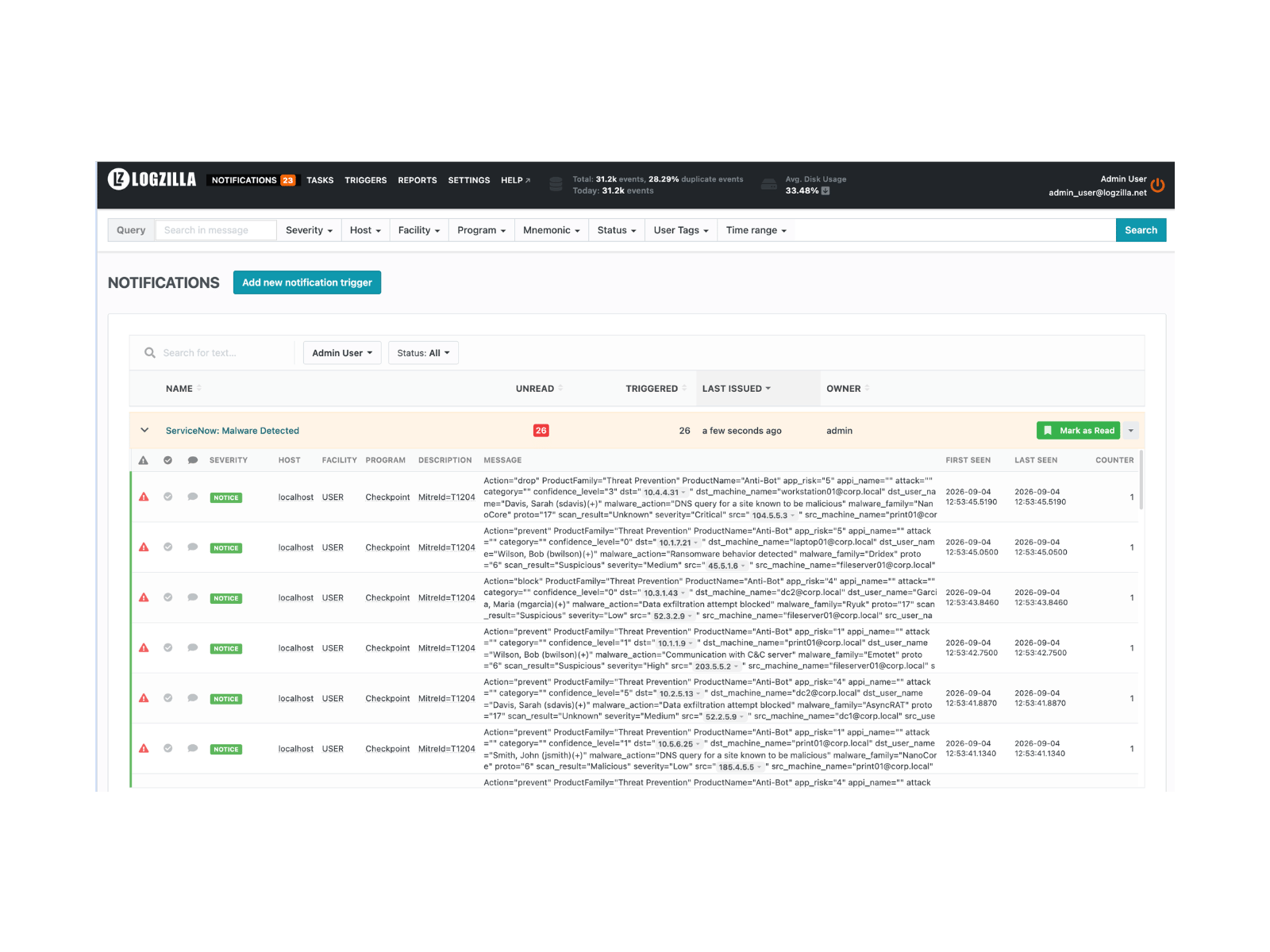

With Issue notification ticked, the Notifications page lists the events the trigger forwarded:

If nothing arrives, search LogZilla for program = ServiceNow internal events, and check the LogZilla log of the Celery worker.

Troubleshooting

Upgrading from the ServiceNow Event Management app

Releases before v6.43 shipped a servicenow_em appstore app that forwarded events through a script. On upgrade the app is uninstalled (with a backup under the uninstalled apps directory), the values of its config.yaml are carried into the ServiceNow settings, and its triggers become Send to ServiceNow triggers, so forwarding continues without changes. The app's Forwarding Health dashboard and its status events are gone; delivery problems are reported as internal ServiceNow events instead.

Caveats

• One ServiceNow destination per LogZilla instance.
• Forwarding is one-way. "Clear" or "close" events are not sent when a previously forwarded condition resolves; LogZilla's orchestration rules can drive that lifecycle in ServiceNow when needed.
• Private certificate authorities must be trusted by the LogZilla containers' system CA store; there is no separate CA bundle setting.
